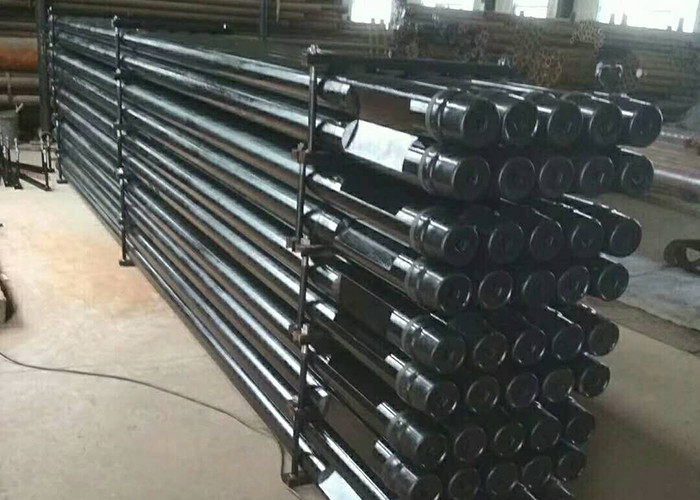

15FT High Pressure API Reg Welding Drill Pipe 6.5mm Wall Thickness

Name: 15FT High Pressure API Reg Welding Drill Pipe 65mm Wall Thickness
Brand: BaiWei
Price: 1 USD

Brand Name : BaiWei

Place of Origin : Hebei China

Price : Negotiable

Payment Terms : T/T

Delivery Time : 20-30 working days, which will be adjusted according to different products and inventory

Packaging Details : According to customer needs

Type : DTH Pipes

Machine Type : Drilling Equipment

Material : High Manganese Steel

Processing Type : Forging

Use : Well Drilling

Application : Well drilling,DTH drilling, Coal Drilling, Quarrying

Pressure : High Pressure

Diameter : 50mm to 159mm

Length : 15FT/20FT/25FT

Color : Request

Advantage : High Performance

Usage : Well Drilling

Contact Now

API Reg Rod / Drill Pipe With Wrench Flat For DTH Drilling

Product Description

Specification :

1. Reliable working performance
2. Outside Size:60mm,76mm,89mm,114mm,140mm
3. Thread:API Reg
4. Wall Thickness: 5.5/6.5mm/7.5/8.5mm/10mm

OD A	Wall B	Length L	Weight lbs	ID Pin C	Across Flat D	Flat Length E	Dist From Shoulder F	Flat Length G	Across Flat H	Connection
3.5"	.315"	20'	245	1.75"	2.75"	12.5"	3.25"	2.25"	3.25"	2 3/8IF
4.5"	.337"	20'	345	1.75"	3"	12.5"	3.25"	2.375"	4"	3 1/2 Reg
4 1/2"	.337"	20'	345	2 1/8"	3"	12 1/2"	3 1/4"	2 3/8"	4"	2 7/8 IF
4 1/2"	.337"	25'	430	1 3/4"	3"	12 1/2"	3 1/4"	2 3/8"	4"	3 1/2 Reg
4 1/2"	.337"	25'	430	2 1/8"	3"	12 1/2"	3 1/4"	2 3/8"	4"	2 7/8 IF
4 1/2"	.337"	30'	510	1 3/4"	3"	12 1/2"	3 1/4"	2 3/8"	4"	3 1/2 Reg
4 1/2"	.500"	25'	510	1 3/4"	3"	12 1/2"	3 1/4"	2 3/8"	4"	3 1/2 Reg
4 1/2"	.500"	30'	615	1 3/4"	3"	12 1/2"	3 1/4"	2 3/8"	4"	3 1/2 Reg
4 1/2"	.750"	25'	805	1 3/4"	3"	12 1/2"	3 1/4"	2 3/8"	4"	3 1/2 Reg
5"	.500"	25'	695	1 3/4"	3"	12 1/2"	3 1/4"	2 3/8"	4"	3 1/2 Reg
5"	.500"	30'	775	1 3/4"	3"	12 1/2"	3 1/4"	2 3/8"	4"	3 1/2 Reg
5"	.750"	30'	1100	1 3/4"	3"	12 1/2"	3 1/4"	2 3/8"	4"	3 1/2 Reg
5"	.750"	25'	930	1 1/2"	3"	12 1/2"	3 1/4"	2 3/8"	4 5/8"	3 1/2 Beco
5 1/2"	.750"	25'	1045	1 1/2"	3"	12 1/2"	3 1/4"	2 3/8"	4 5/8"	3 1/2 Beco
5 1/2"	.750"	30'	1240	1 1/2"	3"	12 1/2"	3 1/4"	2 3/8"	4 5/8"	3 1/2 Beco

Drill pipe usage notes

1. New drill pipe should be oiled before connecting
2. Trim and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to the special requirements of customers

FAQ

Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.

Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.

Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.

Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
