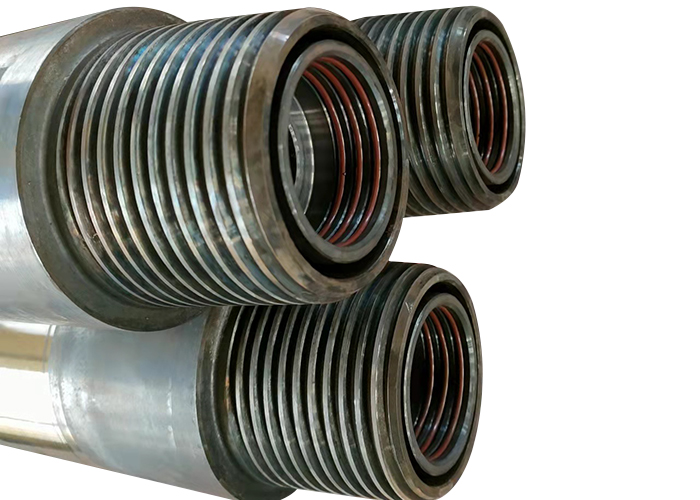

Reverse circulation drill pipe inner pipe with high wear resistance
Product Description
Gas-lift reverse circulation drilling technology is due to large backflow, fast backflow, high drilling efficiency, high drilling efficiency, long bit life, and good well quality. Drilling in complex formations is safe and reliable. Continuous sampling (coring) drilling, saving auxiliary time and reducing labor intensity, has been recognized in practice. It has become the main technical means for drilling water wells, geothermal wells, gas wells, coalbed methane wells, and large-diameter projects at home and abroad, and its application scope is getting wider and wider.
Features of Drill Rod
1. Made of high-quality alloy steel.
2. All our drill pipes are heat treated.
3. Reasonable structure, reliable performance and high use efficiency.
4. Good concentricity, high precision and long service life.
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
| WP50/20 | 50 | 20 | 50 | | 1 , 1.5 |
| WP73/35 | 73 | 35 | 73 | | 1 , 1.5 |
| WP89/40 | 89 | 40 | 89 | | 1 , 1.5
|
Our Services:
1. Drill pipe strictly according to API ISO9001 standard.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities.
4. 24 hours online customer service,feel free contact us.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-30 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need to pay the cost of products and freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
